Pneumatic Conveying
for Calcite, Bentonite & Additive Powder Handling
Customer Requirement:
Turnkey execution including design & engineering, manufacturing, supply installation & commissioning of pneumatic conveying systems for handling raw materials such as calcite and bentonite based powders & additive powders as well as handling well mixed final products and packing into 25 kg bags.
| Type of conveying: | Multiple lines of dense phase type pneumatic conveying system |
| Conveying System Solid Throughput/Capacity: | 2 TPH to 5 TPH (tons per hour) |
| Conveying Distance (m): | Upto 40 meters |
Solutions we offered:

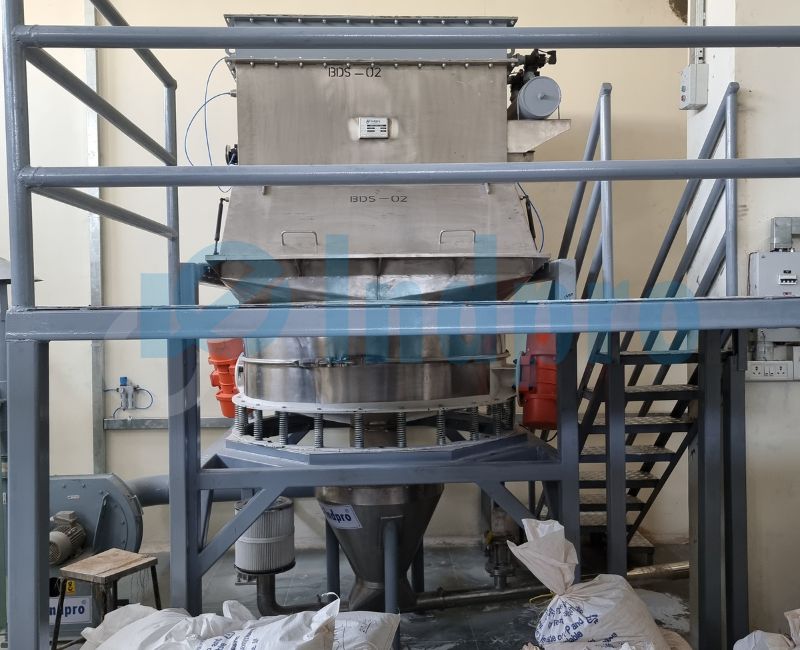

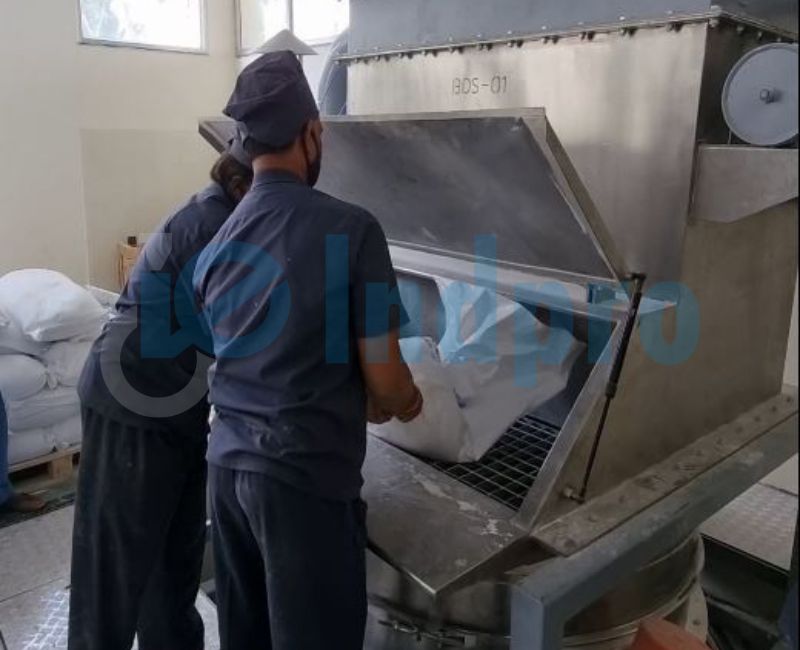

- Bag dump station with integrated vibrating screen & dedusting arrangement for handling 25 kg and 50 kg bags

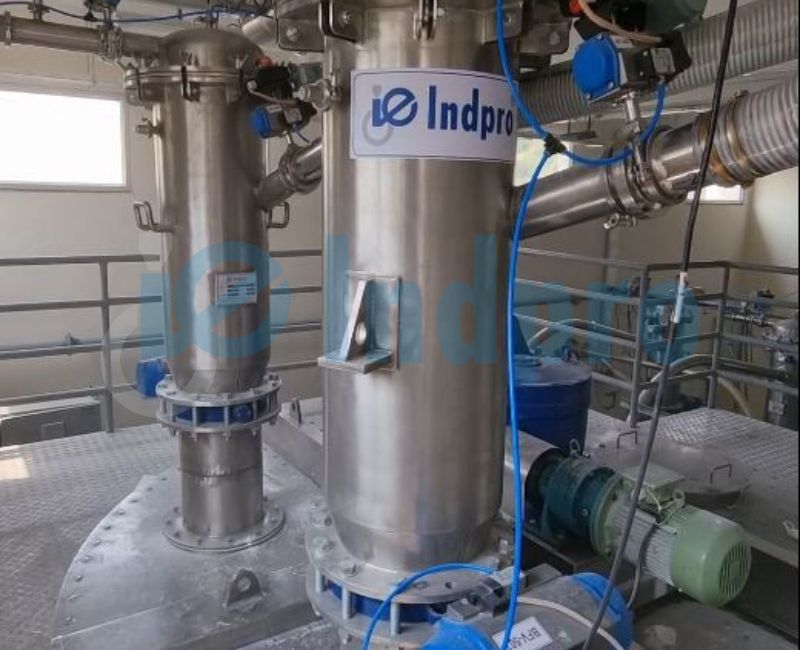

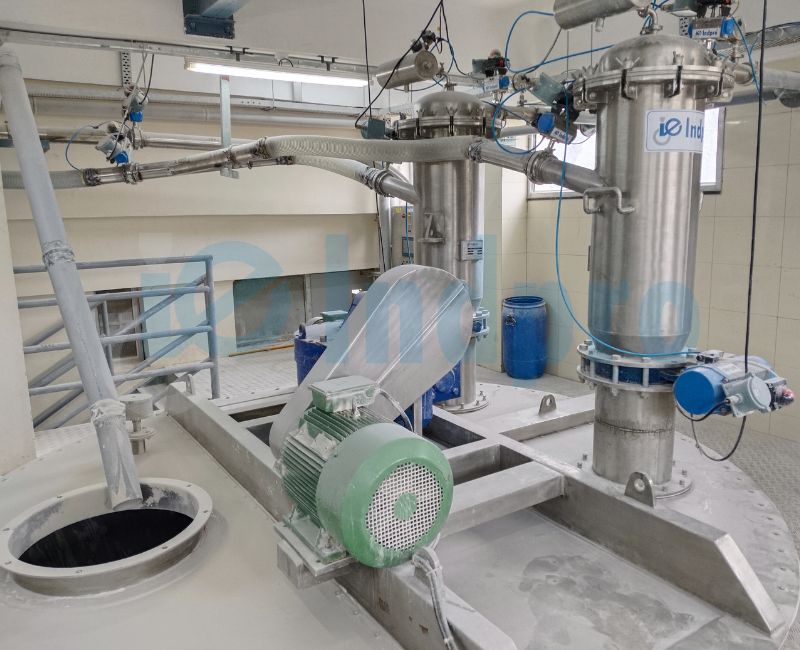

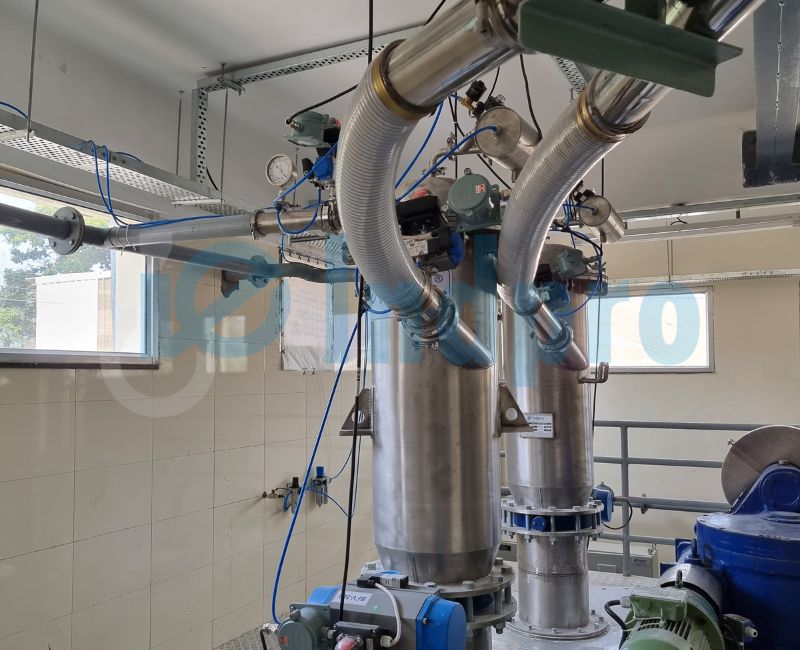

- Multiple lines of dense phase vacuum type powder transfer systems of capacity 2 to 5 TPH for charging into multiple conical screw mixers of different capacities with conveying distance of 40 meters.
- Load cell based system for measurement of batch weight.
- Multiple IBC (Intermediate Bulk Containers) to store final product with sampling system from the outlet of the conical screw mixers.
- Automatic IBC jacking system to interface with dense phase vacuum type powder transfer system for final product.
- Multiple lines of dense phase vacuum type powder transfer systems for final product of capacity 4 TPH for transferring into multiple bagging lines.
- Multiple semi-automatic bagging lines for packing the final product into open mouth 25 kg bags with sealing & stitching arrangement on belt conveyor.
- De-dusting system for complete powder handling automation system.
- Control panel with SCADA for single point plant operations.

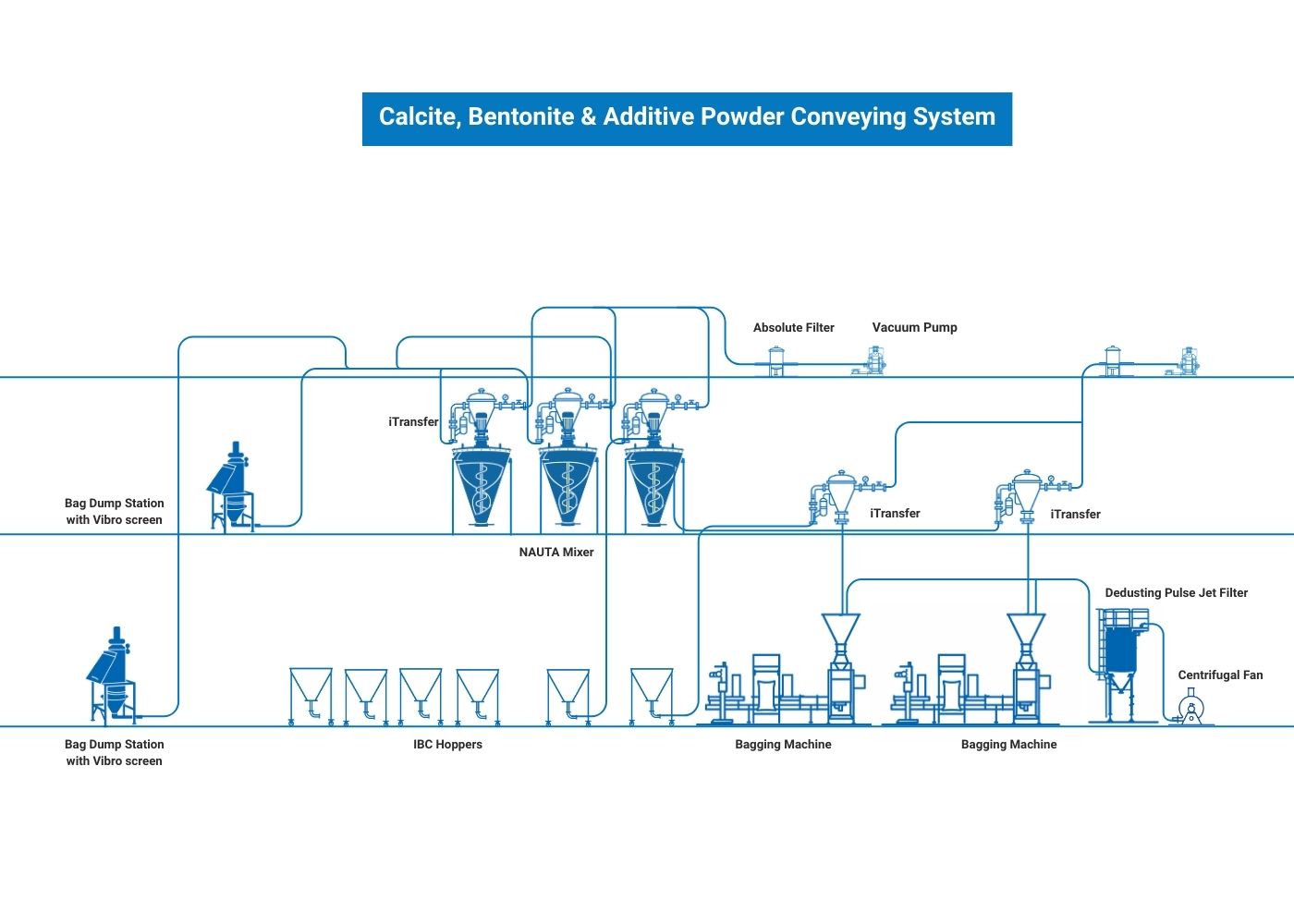

Process Flow Diagrams
Experience the Indpro advantage!
Indpro’s bulk material handling systems are engineered to deliver reliable, efficient, and hygienic solutions for the food processing industry. Designed to meet the unique challenges of handling materials like wheat flour and other food-grade ingredients, these systems ensure safe, contamination-free conveying throughout the production process. From managing raw materials such as flour, starches, and additives to conveying finished products, Indpro’s solutions enhance operational efficiency, product quality, and food safety compliance—making them ideal for diverse applications in the food sector.
