Horizontal Process Mixers
for Efficient & Uniform Bulk Material Blending

Horizontal Process Mixers

for Efficient & Uniform Bulk Material Blending

Fast Mixing. Uniform Blending. High Batch Efficiency.

Horizontal process mixers are designed for batch processing of powders, granules, flakes, and semi-solid materials. The mixer consists of a U-shaped or O-shaped trough with rotating mixing elements mounted on a horizontal shaft.
The horizontal configuration allows high-efficiency material circulation along the length of the mixing chamber, producing rapid and uniform mixing.

Material movement inside the mixer typically involves axial flow along the vessel length combined with radial and tangential particle movement, resulting in three-dimensional mixing.

Engineering Advantages

High mixing efficiency for bulk solids
Uniform distribution of minor additives
Short mixing cycles
Efficient liquid incorporation
Large batch capacities
High batch capacity with relatively low power consumption
Gentle mixing suitable for fragile materials

21+

YEARS OF LONG LASTING AND MUTUALLY REWARDING RELATIONSHIPS

bag slitting in action - Indpro Engineering Pune

Pneumatic conveying system thumbnail - Indpro

Ready to Upgrade Your Mixing Process?

Indpro delivers high-performance process mixers for fast, uniform, and efficient blending—tailored to your material and application needs.

Talk to our experts today.

Types of Horizontal Process Mixers Offered:

Type	Ribbon Type	Paddle Type	Plough Shear Type
Mixing Principle	Outer ribbon transports material from ends toward center Inner ribbon moves material from center toward ends Creates continuous convective mixing and radial diffusion	Each paddle lifts and cascades material upward Generates axial circulation (forward + backward) Ensures cross flow and uniform mixing	Throws material into a fluidized zone High shear for rapid dispersion Ideal for cohesive or moist materials
Application	Polymer mixing Food blending Chemical formulation Fertilizers Animal feed	Fragile materials Food mixing Animal feed Powder-liquid blending Granules	Specialty chemicals Detergents Agrochemicals Polymer compounding Pharma powders

Available Configurations for Horizontal Process Mixers

Configuration	Description

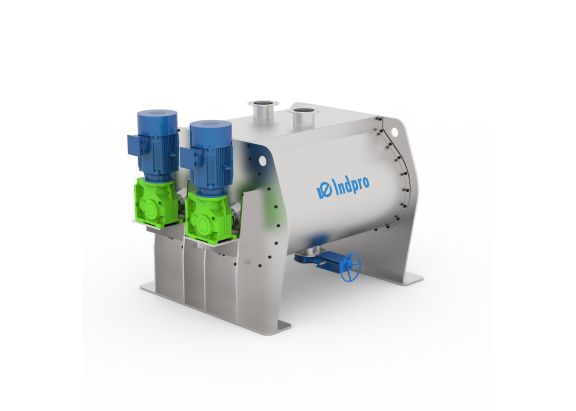

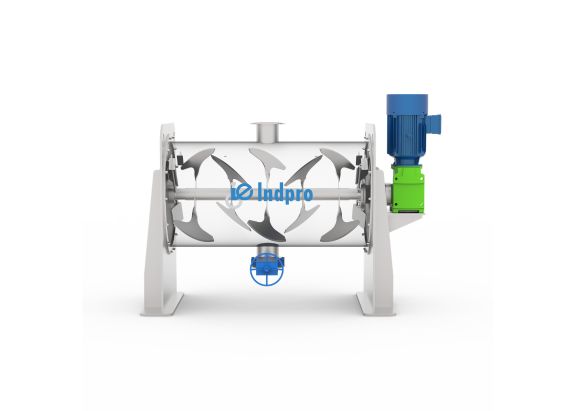

Single Shaft / Dual Shaft	Single shaft ribbon mixers are used for standard mixing applications, while dual shaft ribbon mixers provide higher mixing intensity and faster batch cycles.

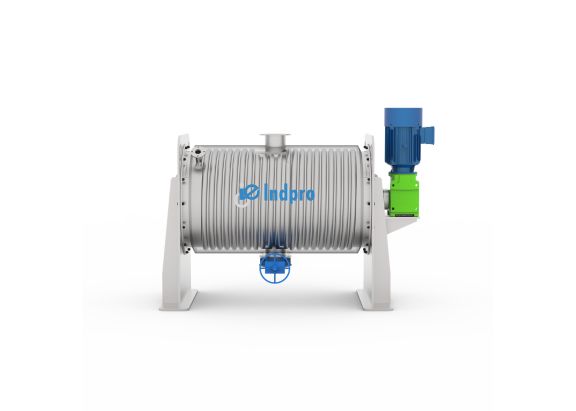

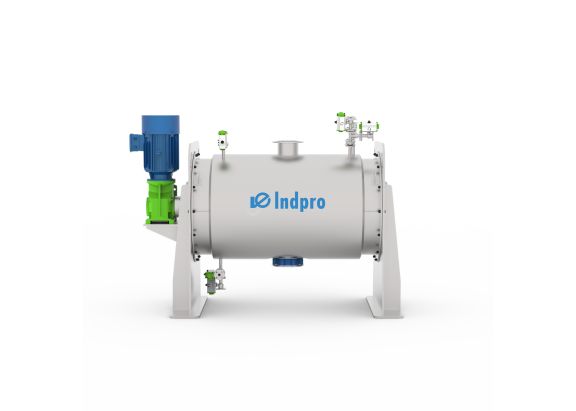

Jacketed	The mixing vessel can be equipped with a heating or cooling jacket for temperature-controlled mixing processes such as coating, drying, or chemical reactions.
Pressure or Vacuum Operation	Designed for processes requiring vacuum mixing, degassing, or inert gas environments.
Liquid Injection	Allows controlled injection of liquid additives, binders, oils, or solvents during mixing.
CIP (Clean-in-Place)	CIP systems enable automatic cleaning of the mixer interior, especially useful for pharmaceutical and food processing applications.

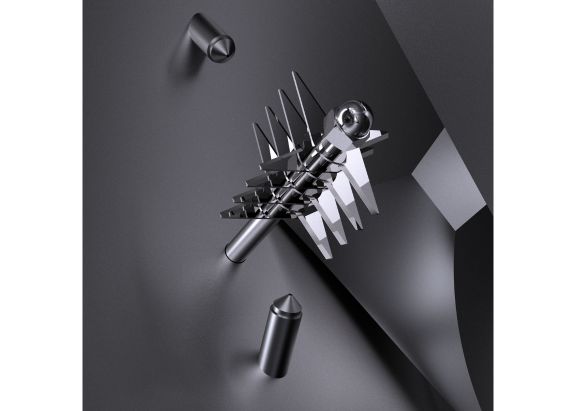

Choppers	The combination of ploughs and choppers enhances deagglomeration, ideal for cohesive or moist materials. It helps break powder agglomerates, disperse liquid additives, and improve powder wetting.
