High-Performance Vertical Mixers for Industrial Applications
Space Saving. Homogeneous Mixing. Reliable Performance.
Vertical process mixers consist of a vertical cylindrical vessel equipped with a rotating mixing element mounted on a single vertical shaft.
The vertical configuration enables material lifting and gravitational recirculation, resulting in effective mixing with a smaller installation footprint.
Material is continuously lifted upward by the mixing element and allowed to flow downward along the vessel walls, creating vertical circulation of particles.
Engineering Advantages
- Space-efficient installation
- Large batch capacities
- Low power consumption
- Effective mixing of bulk powders
21+
YEARS OF LONG LASTING AND MUTUALLY REWARDING RELATIONSHIPS
Ready to Upgrade Your Mixing Process?
Indpro delivers high-performance process mixers for fast, uniform, and efficient blending—tailored to your material and application needs.
Talk to our experts today| Type | Ribbon Type | Paddle Type |
|---|---|---|
| Mixing Principle |
A centrally mounted helical ribbon lifts materials from the bottom along the cone wall and central channel to the top surface. Materials cascade back by gravity, creating efficient vertical multi-circulation. Close clearance creates shear to break clumps and ensure uniform mixing. Full wall coverage prevents stagnant zones. |
• Lifts materials from bottom to top ensuring complete turnover • Operates at controlled speed (~100 rpm) to create fluidization zone • Ideal for delicate products requiring gentle handling |
| Application |
• Polymer raw material mixing • Chemical powder blending • Mineral powder processing • Food ingredient mixing |
• Powder blending • Food ingredient mixing • Chemical powders • Cosmetic powders • Pigments |
| Configuration | Description |
|---|---|
| Jacketed | The mixing vessel can be equipped with a heating or cooling jacket for temperature-controlled mixing processes such as coating, drying, or chemical reactions. |
| Pressure or Vacuum Operation | Designed for processes requiring vacuum mixing, degassing, or inert gas environments. |
| Liquid Injection | Allows controlled injection of liquid additives, binders, oils, or solvents during mixing. |
| CIP (Clean-in-Place) | CIP systems enable automatic cleaning of the mixer interior, especially useful for pharmaceutical and food processing applications. |
Available Configurations for Vertical process mixers
Type of Shaft

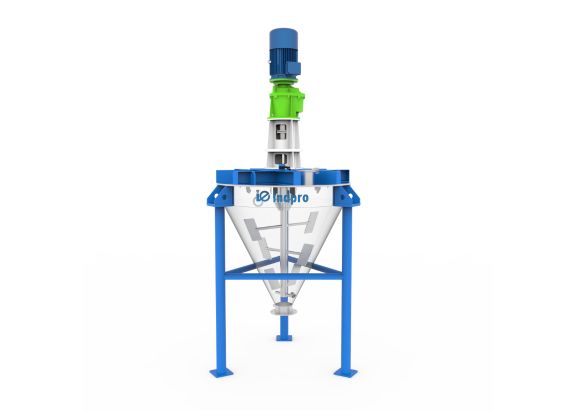

Single Shaft- Ribbon Type
Single Shaft- Paddle Type
Jacketed
Limpet Coil Jacket
Full Jacket

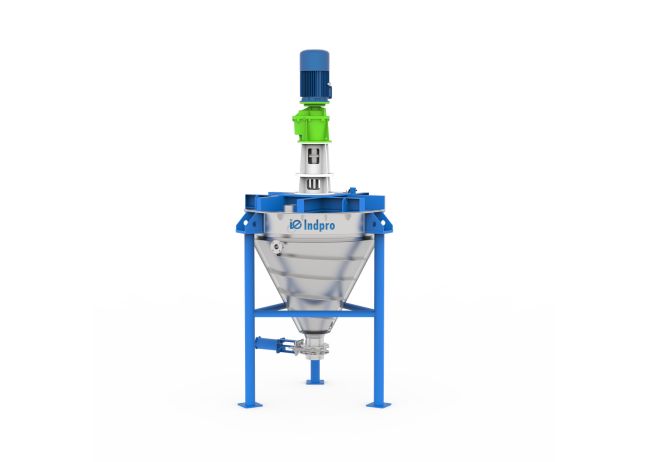

Full Jacket with Spiral
Dimple Jacket

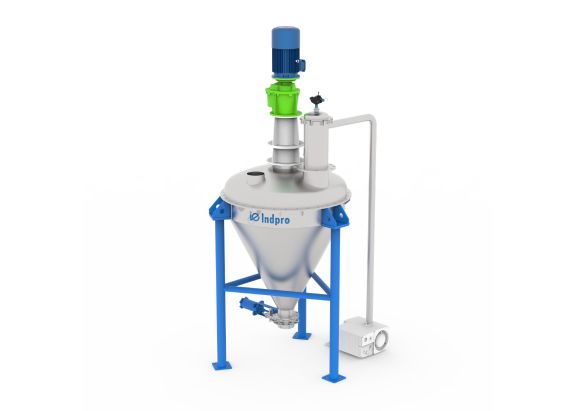

Pressure or Vacuum Operation
Liquid Injection
CIP (Clean-in-Place)
Load Cell Based
Vertical Process Mixers FAQ's
Vertical process mixers are used for efficient blending of powders, granules, flakes, and semi-solid materials in batch operations across various industries.
Common types include ribbon mixers, paddle mixers, and plough shear mixers—each designed for different mixing intensities and material characteristics.
They offer fast mixing cycles, high batch capacity, uniform blending, efficient additive distribution, and relatively low power consumption.
Yes, Vertical mixers are designed for high-capacity batch processing, making them ideal for large-scale industrial operations.
Yes, options like jacketed vessels, vacuum operation, choppers, and CIP systems can be added based on process requirements.
They are widely used in polymers, chemicals, food processing, pharmaceuticals, agrochemicals, and more.
